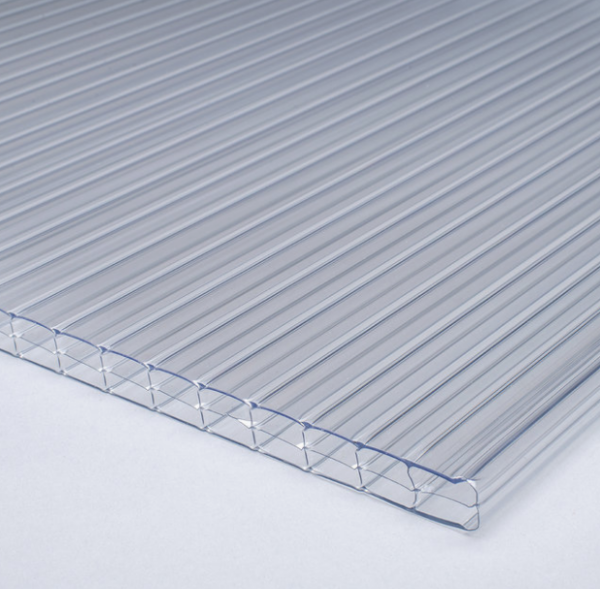

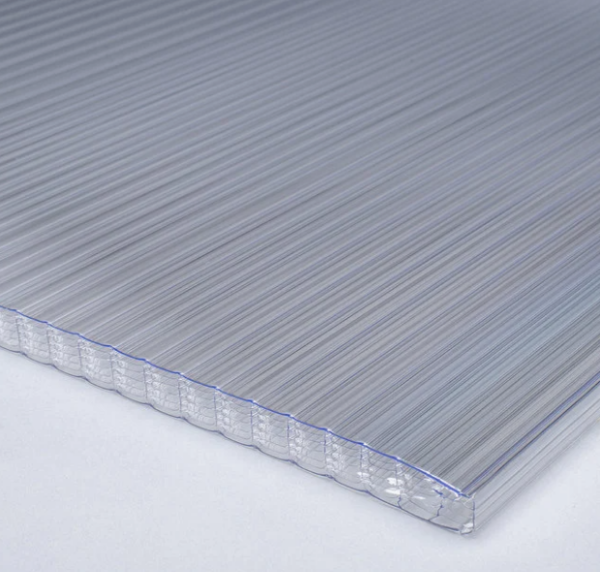

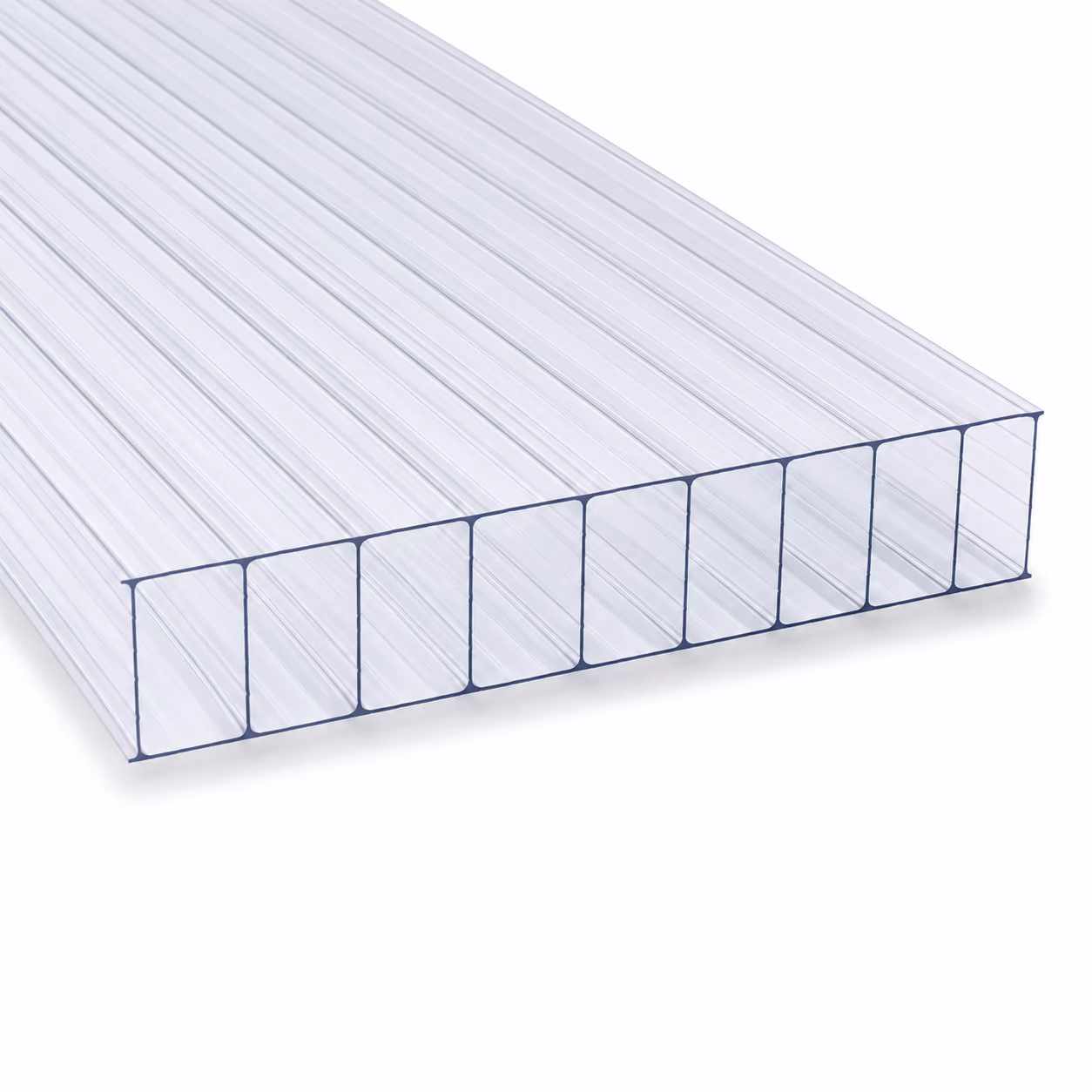

16 mm polycarbonate multi-wall sheet for roof and wall structures

The 16 mm polycarbonate multi-wall sheet is an ideal solution for anyone looking for a strong, durable and translucent sheet for roof and wall applications. Thanks to their multi-wall structure with air chambers, these sheets offer an excellent combination of insulation, impact resistance and rigidity. As a result, they are widely used in verandas, carports, skylights, conservatories, sheds and vertical partition walls.

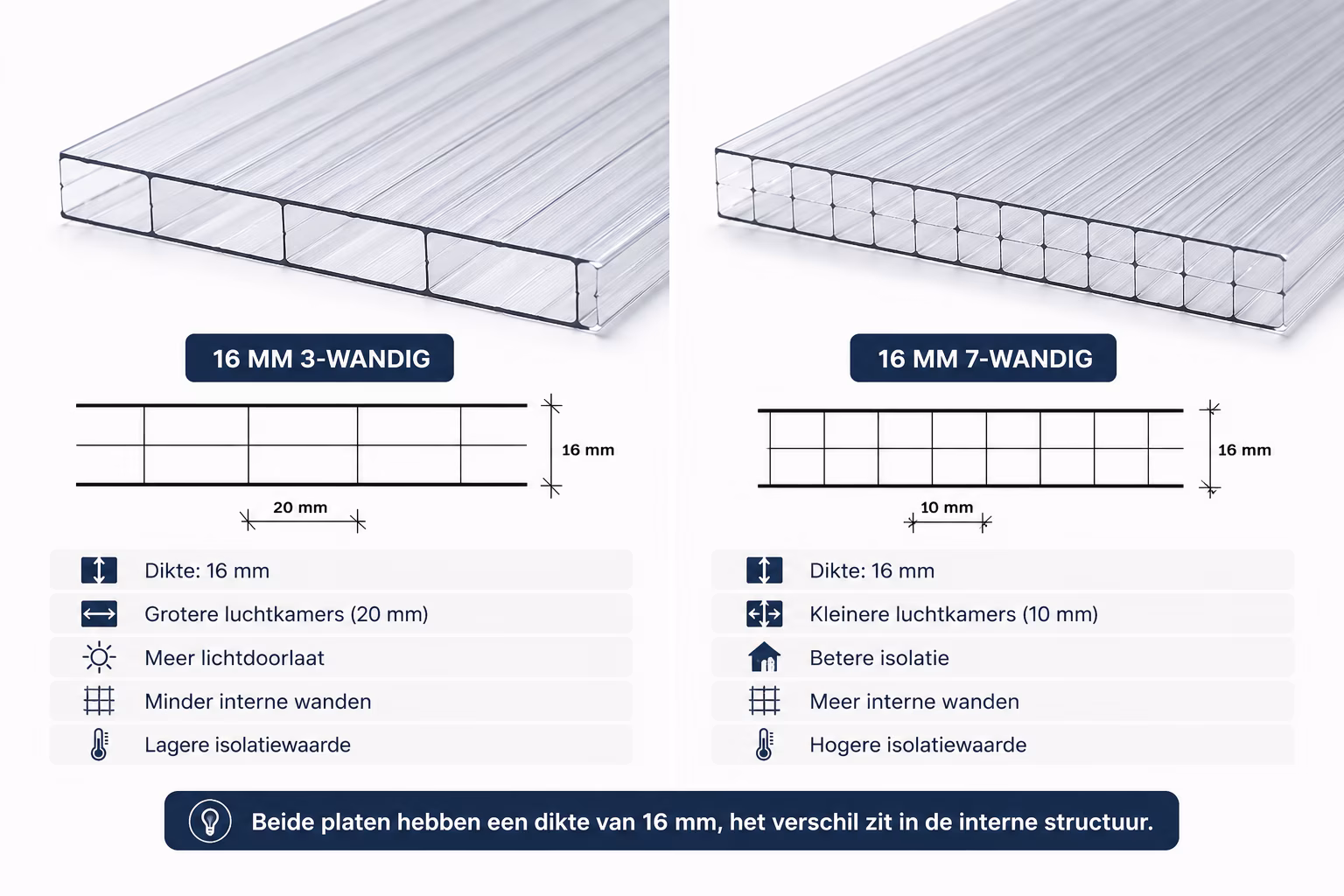

Differences between 16 mm polycarbonate multi-wall sheets in 3-wall and 7-wall versions

A 3-wall polycarbonate multi-wall sheet consists of three layers with two air chambers. This type is lightweight, offers good light transmission and is suitable for applications where insulation is less of a priority. Examples include lightweight canopies, screens or projects where maximum light transmission is required.

The 7-wall design consists of seven layers with six air chambers and offers significantly better thermal insulation and extra rigidity. This is ideal for energy-efficient conservatories, large roof spans, insulated skylights, greenhouses and glasshouses. The higher insulation value reduces heat loss, which is particularly beneficial during the colder months.

Key properties of 16 mm polycarbonate multi-wall sheets

• Up to 250 times stronger than glass of the same thickness
• Impact-resistant, pressure-resistant and highly durable
• UV-resistant and suitable for long-term outdoor use
• Self-extinguishing and chemically resistant
• Easy to saw, drill, mill and assemble
• High insulation value thanks to its multi-walled structure

Further background information on polycarbonate can be found at:
Wikipedia – Polycarbonate

Technical specifications of 16 mm polycarbonate multi-wall sheets – 3-wall (Item No. 2073)

• U-value: 1.9 W/m²K
• Light transmission: 73%
• Weight: 2.7 kg/m²
• Widths: 98 cm or 125 cm
• Length: up to 10 metres

Technical specifications of 16 mm polycarbonate multi-wall sheets – 7-wall (Item no. 2227)

• U-value: 1.78 W/m²K
• Light transmission: 64%
• Weight: 2.5 kg/m²
• Widths: 105 cm or 210 cm
• Length: up to 10 metres (longer lengths available on request)

Installation of 16 mm polycarbonate multi-wall sheets

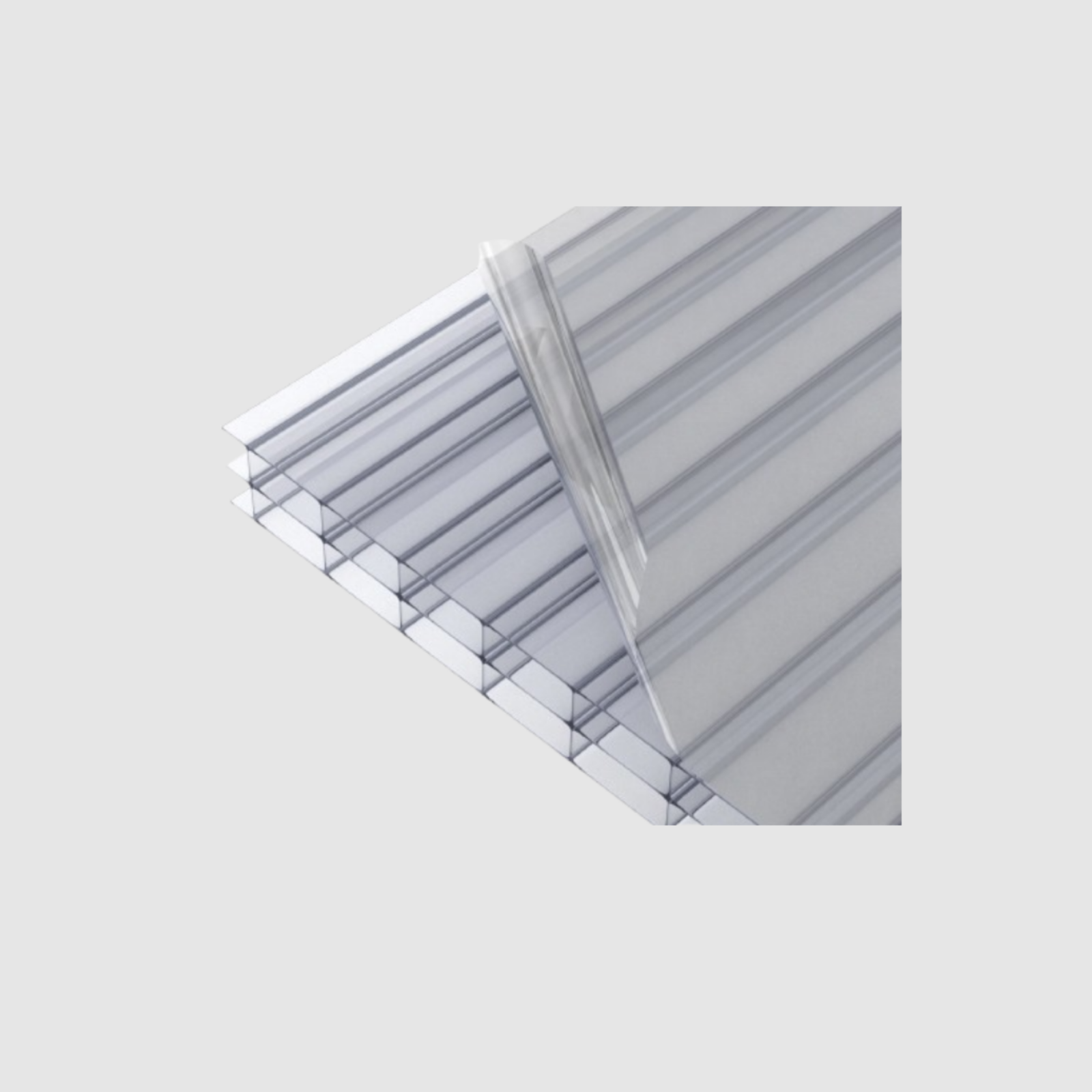

Correct installation significantly extends the service life of the panels. Always remove the protective film before installation to prevent damage. Use breathable tape on the underside of the panels to allow condensation to escape, and non-breathable tape on the top to keep out dirt and insects.

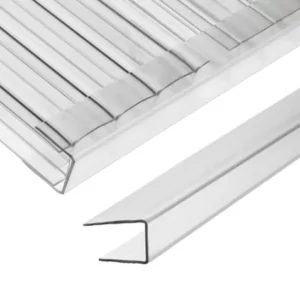

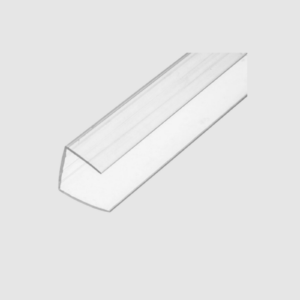

The panels are fitted into aluminium channel profiles, which ensure a watertight and stable finish. For even quicker installation, you can opt for the Klick® system, which allows you to secure the panels firmly in place without any visible screws.

Polycarbonate multi-wall sheets and accessories (internal links)

- 16 mm triple-wall polycarbonate
- 16 mm 7-wall polycarbonate
- All polycarbonate sheets

Need more information or a bespoke solution?

Would you like more information about the 16 mm polycarbonate multi-wall sheet Or are you looking for a bespoke solution? Our team would be happy to discuss your requirements with you. Please get in touch via the contact form, or call
+31 (0) 622 340 847 or send an e-mail to
info@kunststofforte.nl.

Frequently asked questions about 16 mm polycarbonate multi-wall sheets

Is 16 mm suitable for a veranda or canopy?
Yes, 16 mm polycarbonate multi-wall sheets are widely used for verandas, carports and canopies because of their good insulation properties and strength.

What is the difference between 3-wall and 7-wall?
A 3-wall sheet lets more light through and is lighter. A 7-wall sheet has a higher insulation value and is stiffer.

Can I fit polycarbonate multi-wall sheets myself?
Yes, with the right profiles and fitting accessories, the panels are easy to install.
