Description
What are the advantages of plastic driving sheets?

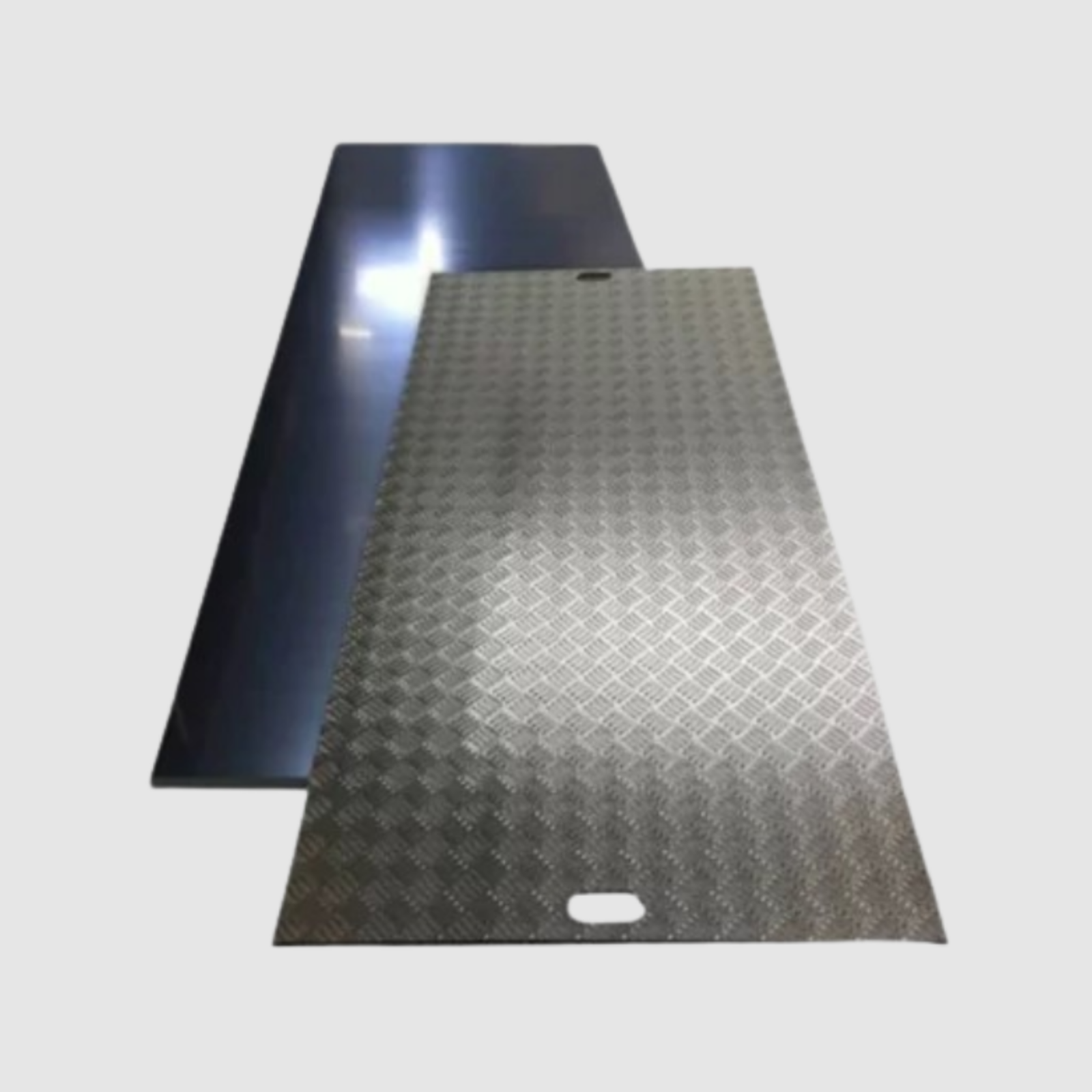

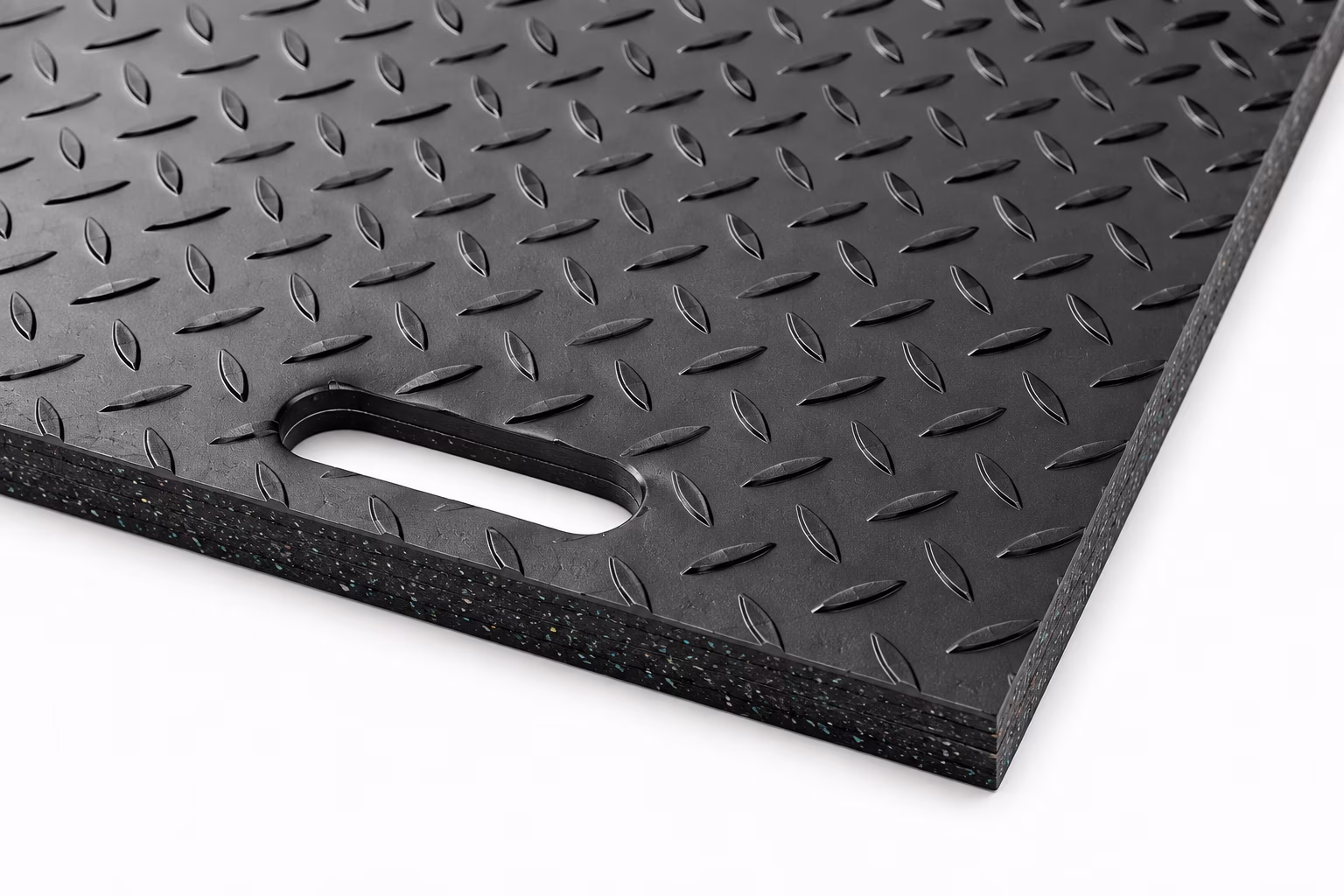

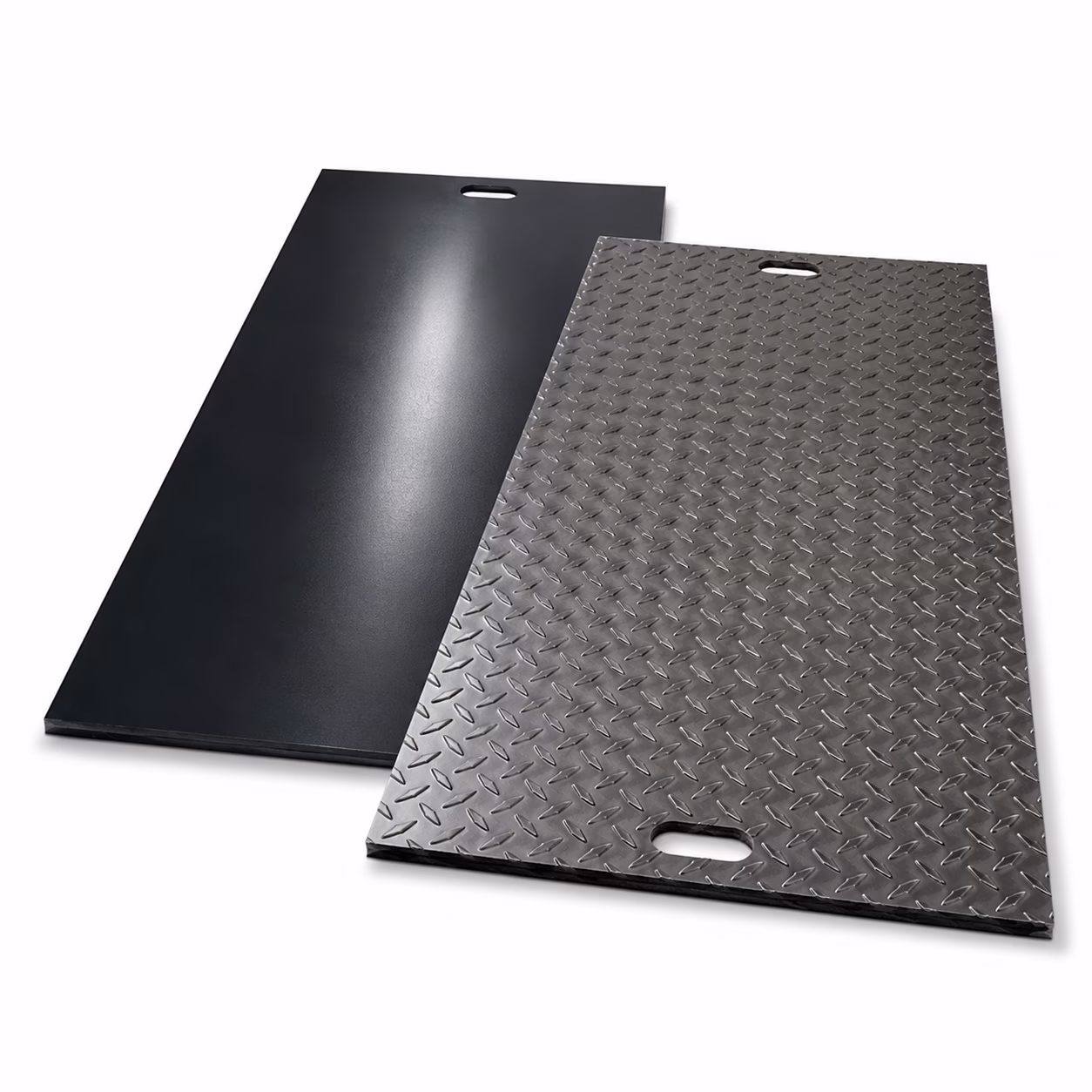

PE driving plates are made of the maintenance-free plastic polyethylene. This makes them lightweight and easy to move. Besides the maintenance-free aspect, the plastic sheets are also impervious to oxidation and rot, making them virtually indestructible. The plastic driving plates, also known as walking baffles, have an anti-slip structure as standard. The plastic polyethylene ensures that the sheets always remain flat, with no sharp edges that could cause damage.
The various applications of roadway slabs

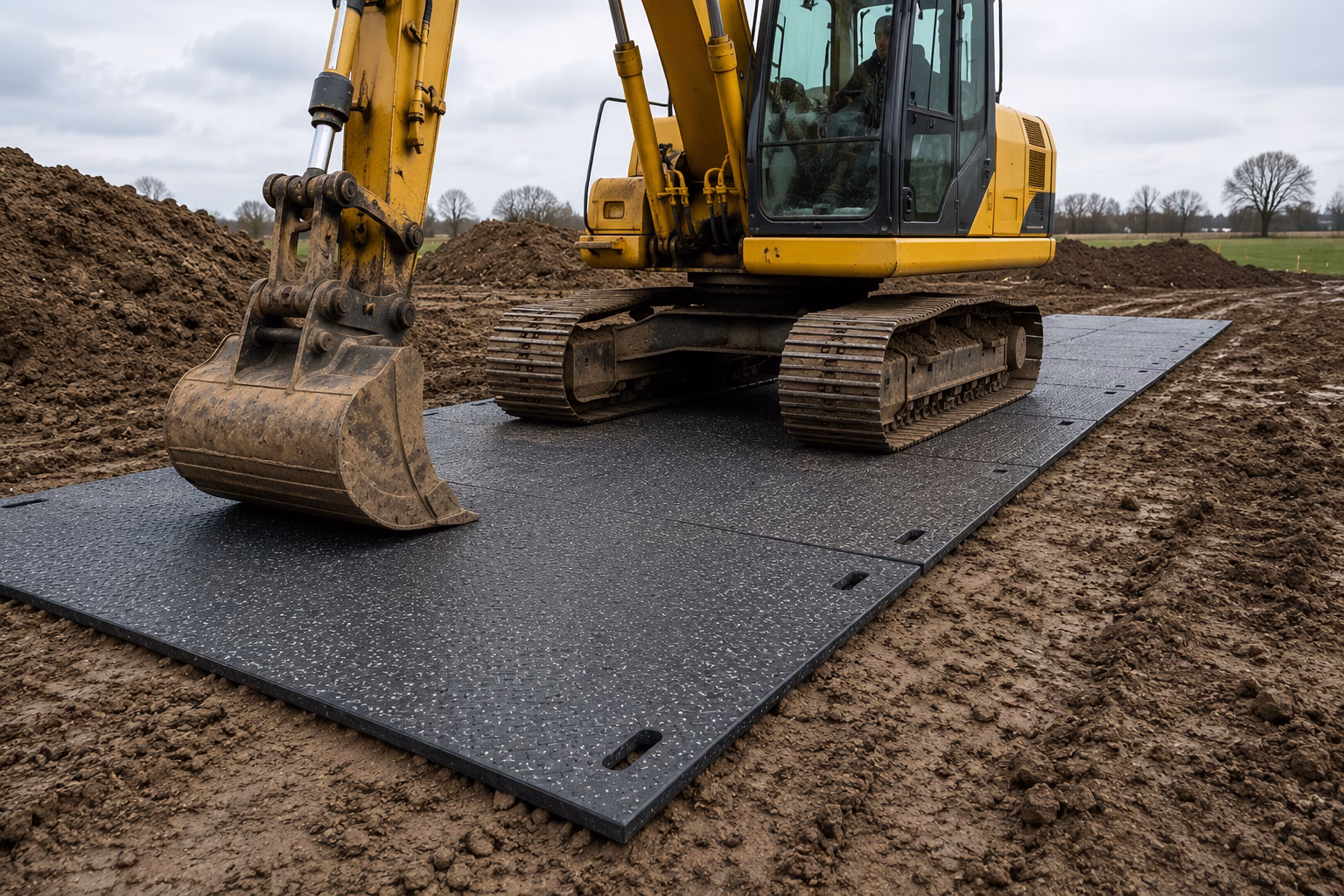

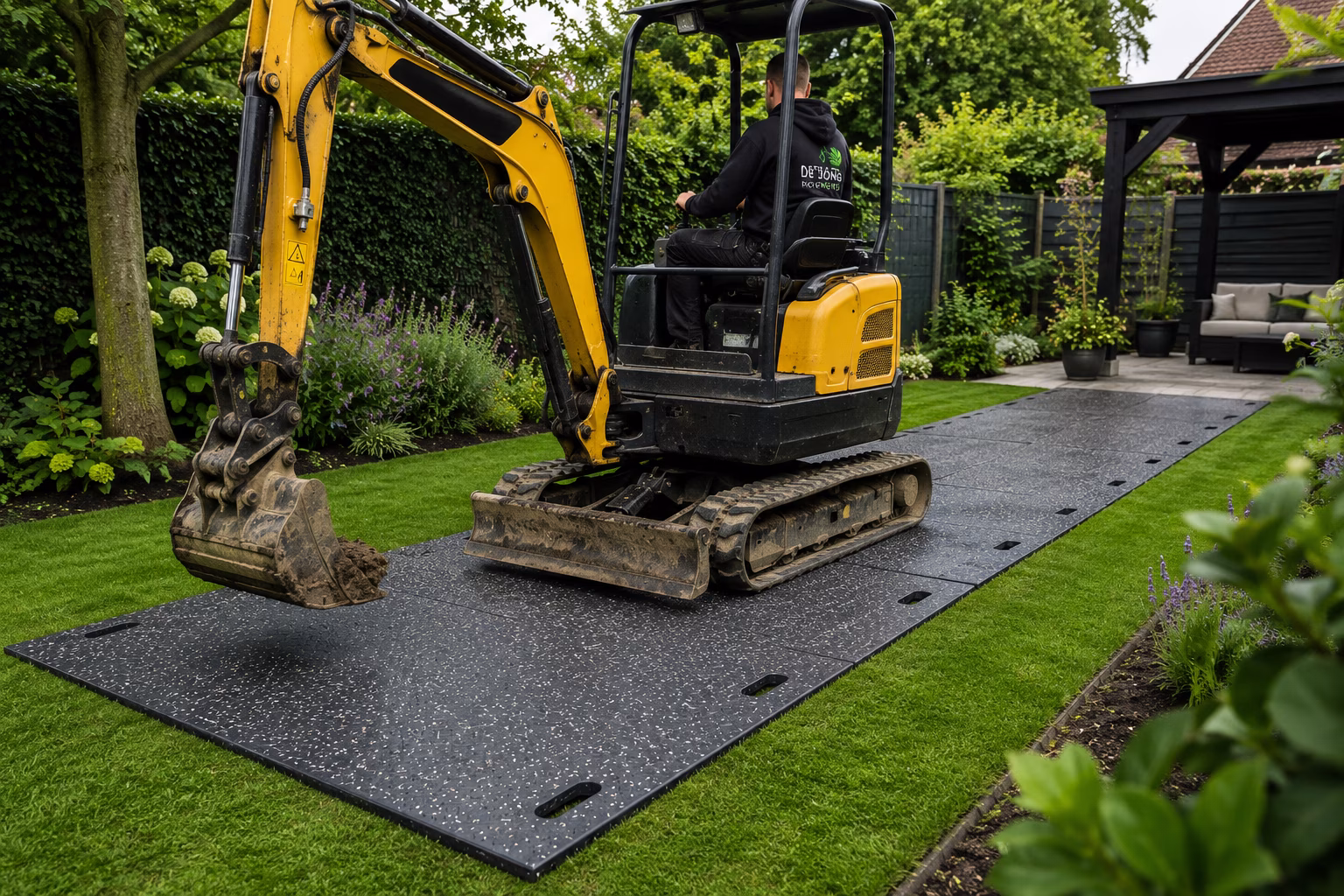

Polyethylene road plates are suitable for various substrates. These include loose substrates such as sand and clay, car parks, construction sites and driveways. It is also possible to have your logo milled into the plastic road plates and number them. This makes them less prone to theft and you will know exactly which plate is yours if there are several plastic plates. If you want a company logo on the plastic sheets, we need a DXF file for AutoCAD. If you do not have this, please contact our technical draughtsman HEU-TEK by sending an e-mail to info@heutek-cadtekenen.nl.
The properties of PE row sheets
Plastic driving slabs have properties that make them unique and do exactly what you want them to do. We have listed the properties:
- Weight approx. 50 kg, so easy to move
- Any length is possible, special widths on request
- Flexible and therefore virtually indestructible
- No oxidation or rotting, also maintenance-free
- Less risk of damage to your equipment and/or fleet
- No damage to lawn or pavement

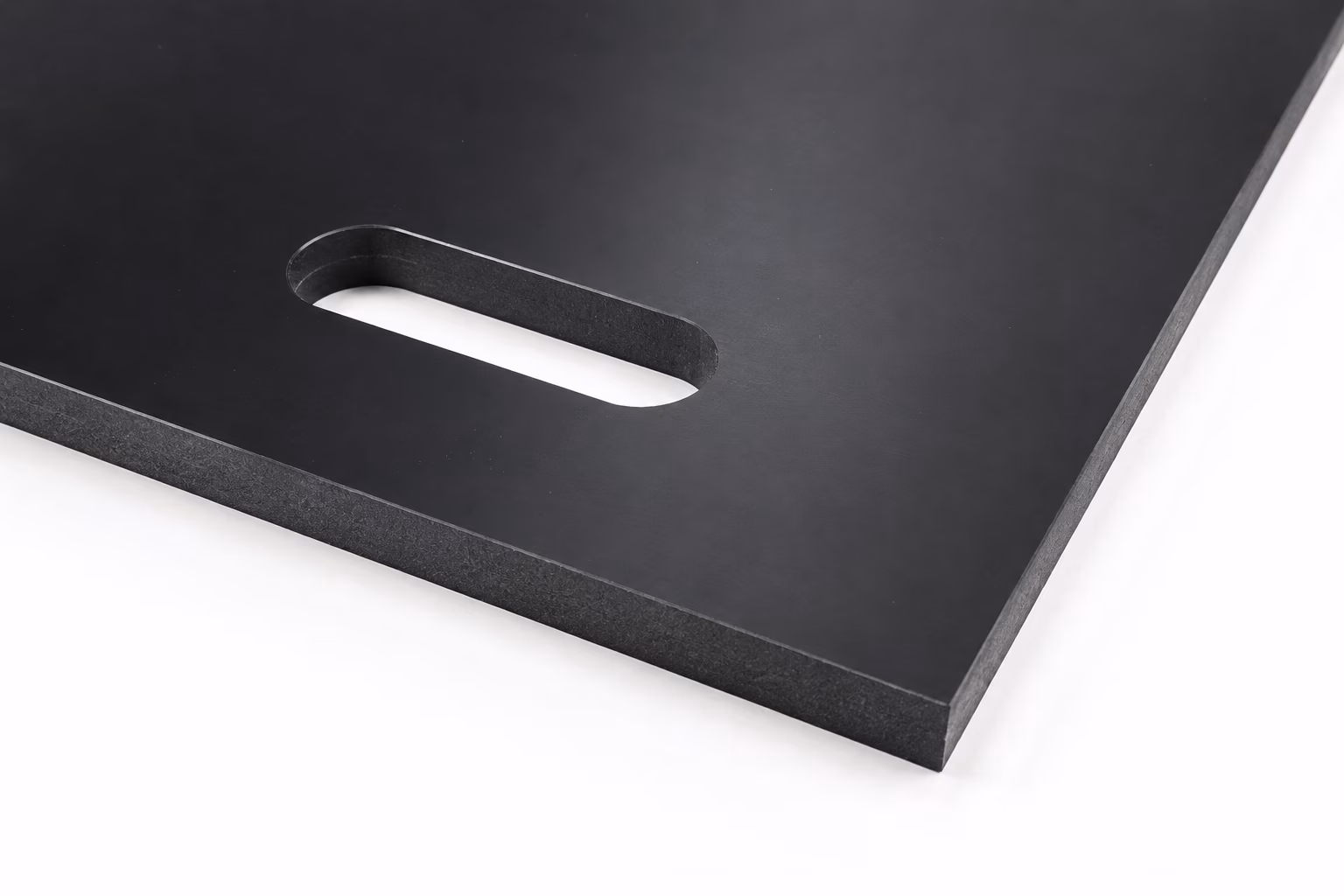

- No sharp edges, driving plates remain flat
- Less prone to theft compared to steel plates
What should I pay attention to when buying road plates?
Do you want to buy plastic driving sheets? When buying polythene roadway slabs, there are some important things to consider. The load-bearing capacity of the roadway slabs should be sufficient for the weight of the equipment that has to drive over them. It is also important to measure the dimensions of the roadway slabs so that they fit the desired location and are suitable for the intended use. Also, ensure that the roadway slabs have a non-slip structure to ensure safety. The material from which the road plates are made should be resistant to weather conditions and chemicals.

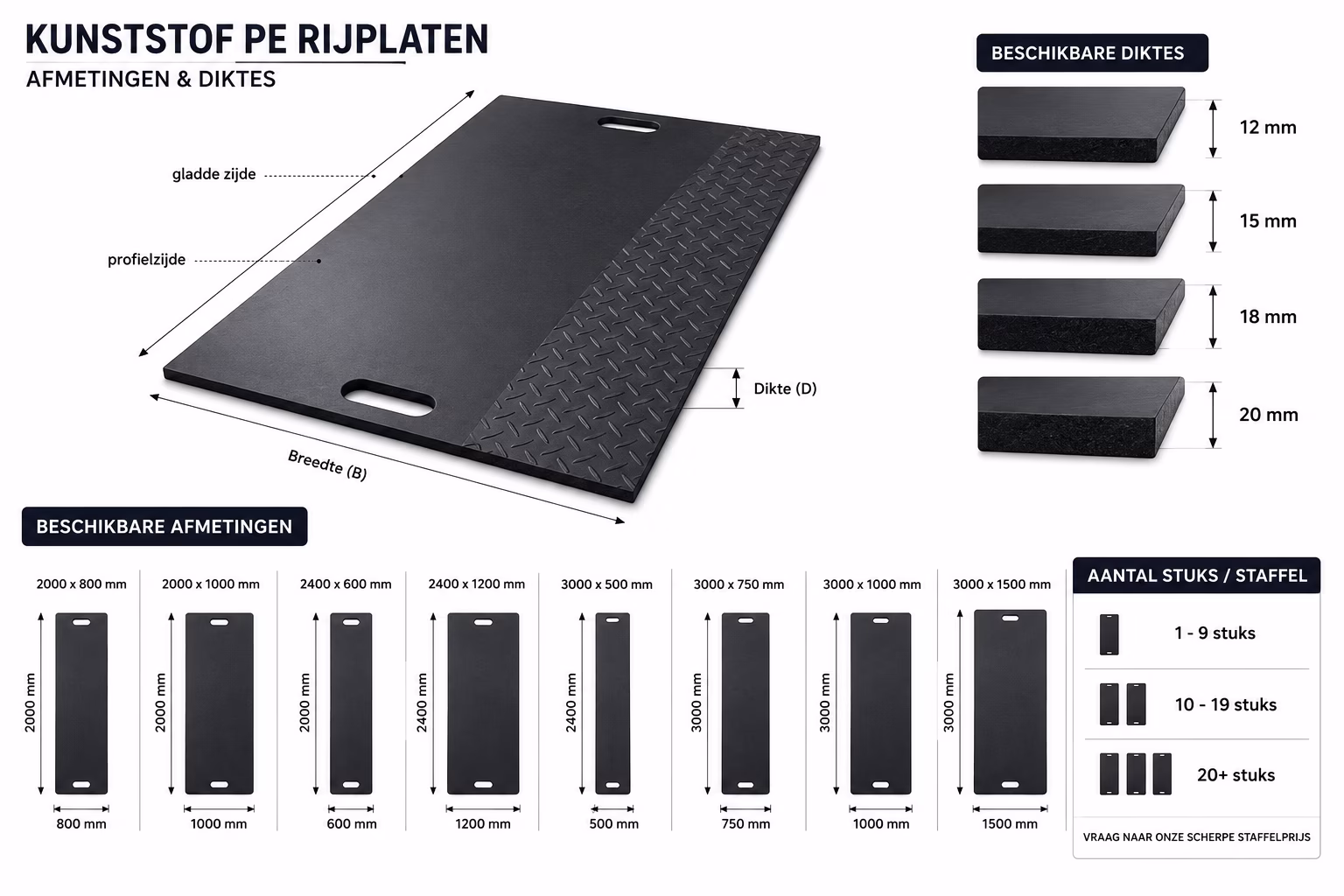

Furthermore, the black plastic driving plates are available in various standard sizes. The 12 mm thick plastic sheet is fitted with two handles on both short sides. The 15 mm and 20 mm thickness sheets are equipped with four handles, two on both short sides. The maximum loads per thickness are respectively 35 tonnes at 12 mm, 45 tonnes at 15 mm and 60 tonnes at 20 mm. We also offer lightweight 'arbo(plates)'. These weigh only 23 kg and are available in a standard size of 2000x800x15 mm. These plates come with a handle on the long side. You can order all plates individually or in multiples of 10 or 20.
maximum load capacity per thickness
| Dimensions (mm) | Thickness (mm) | Weight (kg) | Maximum load capacity (tonnes) |
|---|---|---|---|
| 2400 x 600 | 12 | ~17 kg | 35 tonnes (depending on substrate) |
| 3000 x 1000 | 12 | ~36 kg | 35 tonnes (depending on substrate) |
| 2400 x 600 | 15 | ~21 kg | 45 tonnes (depending on substrate) |
| 2400 x 1200 | 15 | ~42 kg | 45 tonnes (depending on substrate) |
| 2000 x 800 | 15 | ~24 kg | 45 tonnes (depending on substrate) |
| 2000 x 1000 | 15 | ~30 kg | 45 tonnes (depending on substrate) |
| 3000 x 500 | 15 | ~19 kg | 45 tonnes (depending on substrate) |
| 3000 x 750 | 15 | ~28 kg | 45 tonnes (depending on substrate) |
| 3000 x 1000 | 15 | ~38 kg | 45 tonnes (depending on substrate) |
| 3000 x 1500 | 15 | ~57 kg | 45 tonnes (depending on substrate) |
| 3000 x 500 | 18 | ~23 kg | 60 tonnes (depending on substrate) |
| 3000 x 1000 | 18 | ~46 kg | 60 tonnes (depending on substrate) |
| 2400 x 600 | 20 | ~28 kg | 60 tonnes (depending on substrate) |
| 2000 x 1000 | 20 | ~40 kg | 60 tonnes (depending on substrate) |
| 2400 x 1200 | 20 | ~56 kg | 60 tonnes (depending on substrate) |
| 3000 x 500 | 20 | ~31 kg | 60 tonnes (depending on substrate) |
| 3000 x 1000 | 20 | ~62 kg | 60 tonnes (depending on substrate) |
Note: The stated load capacity depends on the substrate and the type of load.
Why order from Plastic Forte?
- Fast delivery time
- Pay safely
- Personalised service
- Wide online range
- Lots of knowledge
- Personal advice
Get in touch
Buying a PE plastic driving plate involves more than is sometimes thought. That is why our experienced staff are at your service if you have any questions. Have you placed an order? Then you will enjoy fast delivery within 2 to 5 working days. If you want to know the exact delivery date, please contact us. We can agree on a specific date with you, then you know where you stand. Ordering road plates with special dimensions? Then you can request a request a quotation.
We think it is important that you purchase the right products, as our range of plastic products is very large. You can also easily find other products, for example plastic outrigger plates.
