Kunststof Forte BV

Acrylaat buis transparant XT

7,50251,609,08304,44 VAT incl.

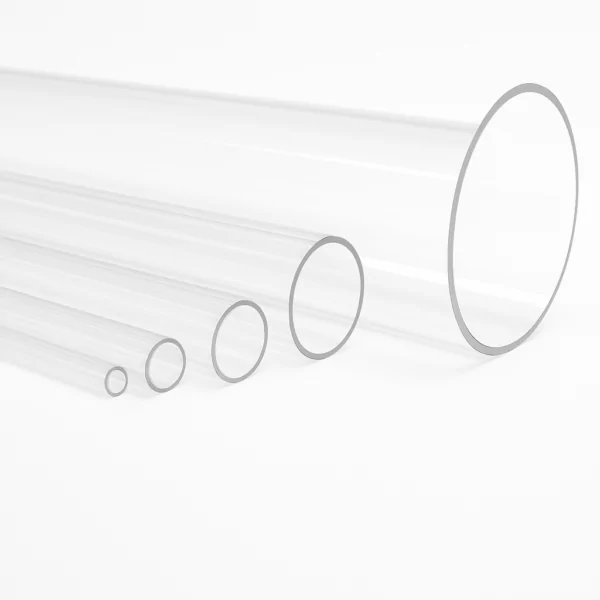

Transparent acrylic tube extruded Ø12mm - Ø250mm

Acrylate is also known as plexiglass or acrylic glass. The extruded transparent tubes can be ordered from us per full length (2 metres) and half length (+/- 1 metre) in various diameters and wall thicknesses. The acrylic tubes are strong and can, if desired, be processed by us for business customers. Are you looking for larger diameters? Then choose cast acrylate (GS). Acrylate GS (cast) tubes are optically purer than extruded transparent tubes. Extruded tubes can have extrusion lines.



Voer de gewenste zaagsnedes lengtes, gescheiden door komma’s hier in:

  • fast delivery time
  • safe payment
  • personal service


Order acrylic tube transparent XT at Kunststof Forte

Why a transparent acrylic pipe Order XT from Kunststof Forte? The advantages at a glance:

  • Fast delivery
  • Pay safely
  • Personalised service
  • Tailor-made is possible
  • Wide range of products online - large stock
  • We are happy to provide you with expert advice
  • Quote request within 24 hours

Do you have a question about a clear acrylic tube from our range? Please feel free to contact us for free advice on plexiglass. Call us at +31 (0) 622 340 847 send an e-mail to info@kunststofforte.nl or leave your details in the contact form. Then we will get back to you as soon as possible.

difference between acrylic gs tube and acrylic xt tube

Acrylic is optically purer than polycarbonate. Polycarbonate, on the other hand, is much more impact-resistant than acrylic. What is the difference between acrylate XT tube and acrylic GS tube? Acrylic GS is optically slightly purer than XT tubes, this is due to the extrusion process by which XT tubes are produced.

Transparent acrylic tube XT

We have an exceptionally large and wide stock of acrylic tubes, also called Acrylic or Perspex pipes. You can choose from various diameters and wall thicknesses. We can deliver these transparent, clear Perspex tubes quickly and economically from our own stock. The tubes are optically pure, strong and can be processed by us. Acrylic tubes are used in stand- and exhibition building, in furniture-/interior construction and mostly for technical applications.

Processing of XT transparent acrylic tube

We can glue the pipes watertight for you, or do you have other wishes? This material is easy to process, saw, glue or drill. The tubes are only sold per full length or half length, but we can cut the tubes to size for you. In that case you will also receive the remaining pieces of the sawn tube at home. Acrylic moulded tubes are weatherproof, UV stable and do not yellow. The Plexiglas xt tubes XT are reasonably UV stable and weatherproof, but they are not designed for long-term outdoor use. Eventually they will yellow.

Acrylic tube XT properties

Acrylate / PLEXIGLAS®
Outer diameter in mm:
12, 15, 18, 20, 22, 25, 30, 40, 50, 60, 64, 70, 80, 90, 100, 110, 120, 133, 150, 160, 180, 200, 250
Wall thickness in mm:
2, 2,5, 3, 4, 5
Half length (±1000mm), Full length (±2000mm)
sets, reactors, shop presentation
set design, industry, plastics processing/trade, machine building, shop fitting

Uitzettingscoëfficient 0.6 mm/m 10°C
Soortelijke massa: 1.19 g/cm³
Diktetolerantie: 0.4 mm +/- 10% van de nominale dikte
Zaagtolerantie: +/- 1mm
Afwijking haaksheid 1.5 mm/1m
Emoduul: 3300 Mpa
Brandclassificering: E volgens EN13501
Buigsterkte: 1200 kg/cm
Gebruikerstemperatuur: -40°C- +80°C
Randen: schoongezaagd


Plexiglas XT Datasheet

Place an order in the webshop

Would you like to order transparent acrylic tube XT? Choose the diameter and wall thickness you want, select the number of acrylic tubes you want and put the products in the shopping basket. Or ask for a offer to! Do you have any questions about the products in our range, or do you have a wish for a certain processing? Please do not hesitate to contact us.

You can contact us by calling +31 (0) 622 340 847 or send an e-mail to info@kunststofforte.nl. It is also possible to leave your contact details in the contact form. Then we will contact you as soon as possible to give you more information about the products.

Additional information

Outer diameter (mm)

12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 80 mm, 90 mm, 100 mm, 110 mm, 120 mm, 133 mm, 150 mm, 160 mm, 180 mm, 200 mm, 250 mm

Wall thickness (mm)

2 mm, 3 mm, 4 mm, 5 mm

Length (mm)

1000 mm, 2000 mm
