Kunststof Forte BV

Plastic stamping plates

20,40416,0024,68503,36 VAT incl.

Order plastic outrigger pads? We deliver plastic outrigger pads that are extremely strong and handy quickly and at low cost. We manufacture these plates in the thickness, format and load-bearing capacity you require. If desired, we can print your company logo and/or company name on the outrigger pads. Take a look at the various products in the webshop, select the dimensions you want and place an order in the webshop. The plates will then be dispatched as soon as possible.

  • fast delivery time
  • safe payment
  • personal service

Description

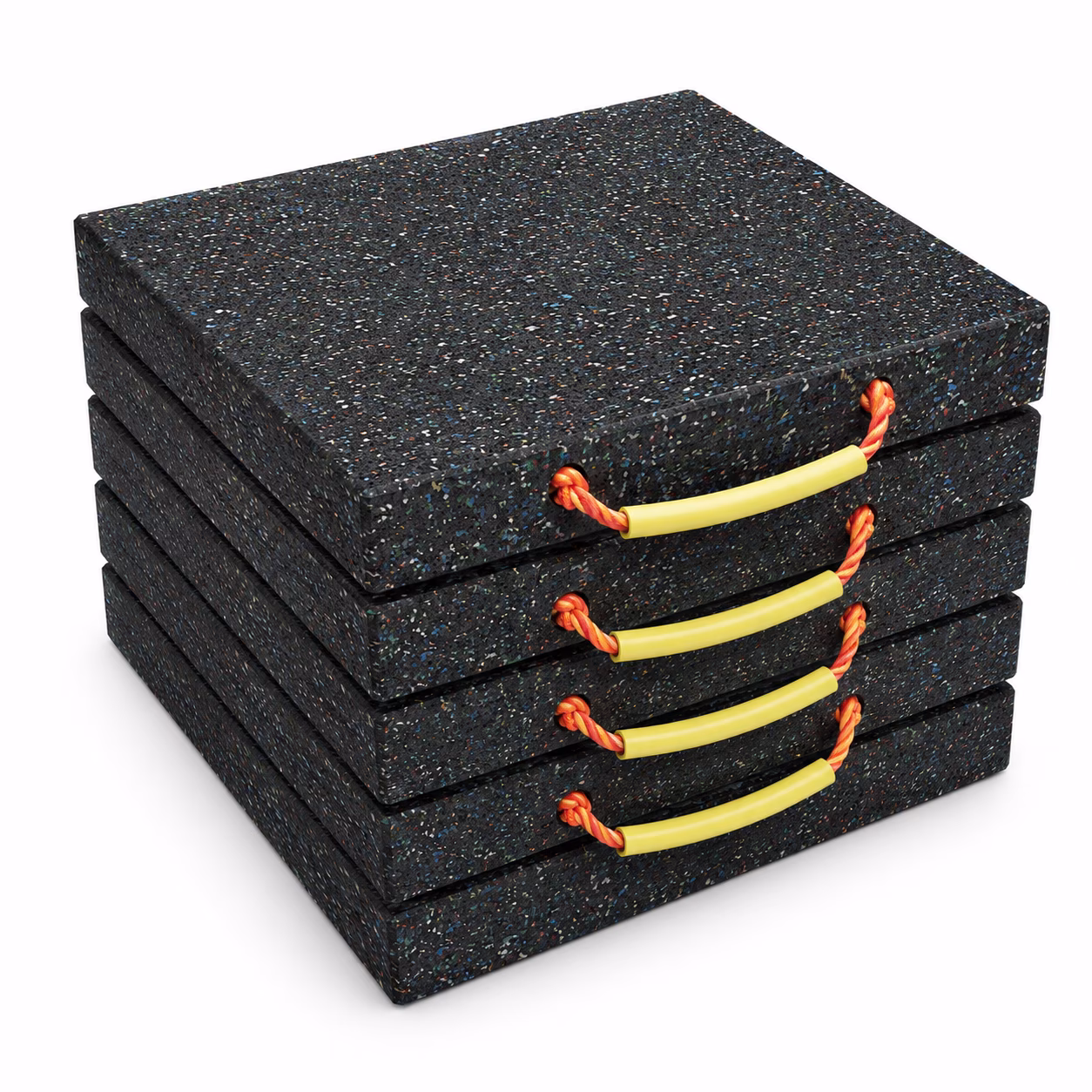

Plastic stamping plates

Plastic outrigger pads are also referred to as HMPE plastic outrigger pads or plastic outrigger pads. These are indispensable plates that are often used for the outrigging of crane jacks, for the support of support legs on trailers or for the outrigging of aerial work platforms. In other words, these driving plates prevent the sinking of industrial machines, but at the same time offer protection to the ground.

As they are made of HMPE 500, they are lightweight, making them easy to handle. Moreover, the plastic outrigger pads are wear-resistant, unbreakable and water-repellent, which means that you can use them for many years. Outrigger pads with a weight of 25 kg have a single support loop, while heavier outrigger pads have two support loops. Thanks to the attached support loop(s), moving the outrigger pads is no problem at all. Finally, the outrigger pads are bevelled on all sides.

Durable and resistant to oils and chemicals

The advantages of these outrigger pads in a row:

  • High quality
  • Safe
  • Competitive price
  • Sustainable
  • Resistant to diesel, oils and chemicals
  • Available in various thicknesses, formats and load capacities

Stretchable, high stiffness and chemical resistant

Outrigger pads prevent the sinking of mobile telescopic cranes, truck mounted cranes, aerial work platforms, concrete pumps and caravans/campers, among others. The outrigger pads are available in square and round versions. Due to the high elongation that the HMPE 500 regenerate can take, the plates will not crack or break during major deformations. They are chemically resistant to UV radiation, petrol, diesel oil, detergents, fats and most acids. Due to the high rigidity, the load is better distributed, causing less damage to the substrate.

Different thicknesses, formats and load capacities

The plastic outrigger pads are available in various thicknesses, formats and load capacities. As a result, you will always find an outrigger plate that fits the intended application. You can, for instance, choose a 3 cm thick outrigger plate, but also one with a thickness of 6 cm. Are you looking for a 40 x 40 plastic outrigger plate, or is a 100 x 100 outrigger plate more suitable for the application you have in mind?

The maximum support leg load varies from 8 tonnes to a maximum of 70 tonnes, with a maximum weight of 57 kg. Do you have a different wish that you cannot find on the website? Feel free to contact us for more information, we will be happy to tell you more about the possibilities.

Matching stamp plate holders

The outrigger plate holders are made entirely of stainless steel and are also available in various sizes and thicknesses. The single outrigger plate holders are provided with a locking ring with elastic, while the double outrigger plate holders are provided with a stainless steel locking pin with a ring. All our outrigger pads and outrigger plate holders are also TÜV-approved, which ensures their safe use.

Order plastic outrigger pads at Kunststof Forte

Are you looking for stamping plates, or for HDPE sheets? Then order them now at Kunststof Forte. Choose your desired size and place the desired quantity in the shopping basket. You can then safely complete your order and the plastic outrigger pads will be delivered to you quickly.

Do you have a question about ordering rubber stamp plates from our range? Please feel free to contact us for advice without obligation. You can contact us by calling +31 (0) 622 340 847 send an e-mail to info@kunststofforte.nl or leave your details in the contact form. Then we will get back to you as soon as possible.

Additional information

Stamp plate 3cm

None, Dimensions 300 x 300 x 30mm, Support leg load max 8.0 ton, own weight 2.6 kg, Dimensions 400 x 400 x 30mm, Support leg load max 10.0 ton, own weight 4.7 kg

Stamp plate 4cm

Geen, Afmeting 300 x 300 x 40mm, steunpootbelasting max. 9.0 ton, eigen gewicht 4.7 kg, Afmeting 400 x 400 x 40mm, steunpoortbelasting max. 12.0 ton, eigen gewicht 6.1 kg, Afmeting 500 x 500 x 40mm, steunpootbelasting max. 18.0 ton eigen gewicht 9.4 kg, Afmeting 600 x 600 x 40mm, steunpootbelasting max 22.0 ton eigen gewicht 13.5 kg, Afmeting 800 x 800 x 40mm, steunpootbelasting max. 35.0 ton eigen gewicht 24.3 kg, Afmeting 900 x 900 x 40mm, steunpootbelasting max. 38.0 ton eigen gewicht 36.5 kg, Afmeting 1000 x 1000 x 40mm, steunpootbelasting max. 35.0 ton eigen gewicht 38 kg, Rond Ø 800 x 40mm, Rond Ø 990 x 40mm

Stamp plate 5cm

None, Dimensions 400 x 400 x 50mm, support leg load max 15.0 ton own weight 7.6 kg, Dimensions 500 x 500 x 50mm, support leg load max 20.0 ton own weight 15kg, Dimensions 600 x 600 x 50mm, support leg load max 25.0 ton own weight 17.1 kg, Dimensions 700 x 700 x 50mm, support leg load 28.0 tonne dead weight 23.3 kg, Dimensions 800 x 800 x 50mm, support leg load max 40.0 tonne dead weight 30.4 kg, Dimensions 900 x 900 x 50mm, support leg load max 42.0 tonne dead weight 38.5 kg, Dimensions 1000 x 1000 x 50mm, support leg load max 50.0 tonne dead weight 47.5 kg, Round Ø 990 x 50mm

Stamp plate 6cm

None, Dimensions 400 x 400 x 60mm, support leg load max 20.0 tons, own weight 9.1 kg, Dimensions 500 x 500 x 60mm, support leg load max 22.0 tons own weight 14.1 kg, Dimensions 600 x 600 x 60mm, support leg load max 30.0 tons own weight 20.3 kg, Dimensions 700 x 700 x 60mm, support leg load 32.0 tonne dead weight 27.9 kg, Dimensions 800 x 800 x 60mm, support leg load max 45.0 tonne dead weight 36.5 kg, Dimensions 900 x 600 x 60mm, support leg load max 48.0 tonne dead weight 46.2 kg, Dimensions 1000 x 1000 x 60mm, support leg load max 70.0 tonne dead weight 57 kg, Round Ø 990 x 60mm, Round Ø 1190 x 60mm
