Beschrijving
Impact-resistant polycarbonate tube that is transparent can take a beating. Plastic tube from Plastic Forte is exactly what you are looking for. The tubes are translucent and specifically developed as engineering plastics. Polycarbonate is particularly impact-resistant, has high mechanical strength, dimensional stability and good creep resistance. Configure your transparent polycarbonate tube as you wish.

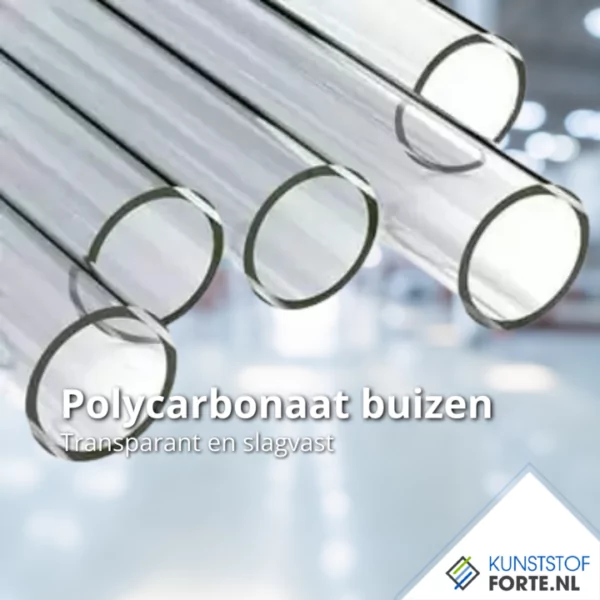

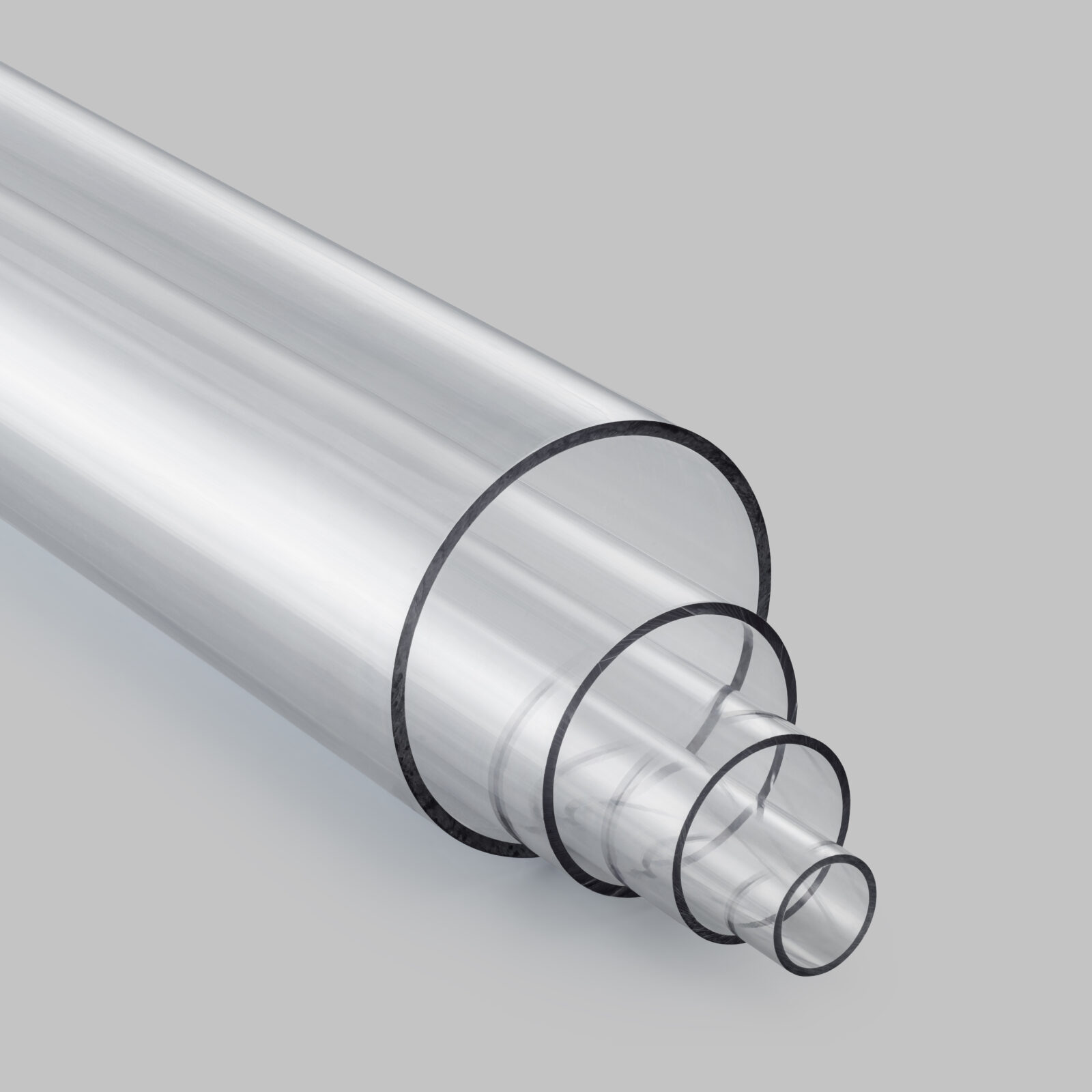

Transparent tube with the properties of polycarbonate
In the plastics industry, polycarbonate tubes are associated with virtually unbreakable, crystal-clear glazing. The version described here, however, is an industrial-grade product that possesses all the ‘well-known’ properties of polycarbonate, with the exception of high clarity. The brand name of the polycarbonate is Gevacril. Polycarbonate distinguishes itself from other plastics through its optical clarity combined with very high impact resistance.
Polycarbonate is an exceptionally strong material and is therefore ideal for use in the manufacture of tubes. This means you can be confident that the tubes will perform perfectly. Unlike plexiglass (which can crack), a polycarbonate tube is practically unbreakable. In fact, polycarbonate sheets are no less than 250 times stronger than plexiglass of the same thickness.
The features of this tube at a glance:
- Industrial engineering quality
- Translucent, but not optically transparent
- Extremely high impact resistance
- Very high dimensional stability
- Good for bonding and welding
- Fire-retardant (fire certification B1 according to European standard)
- Extruded from normal standard granulate
- Not provided with a UV protective layer
Technical specifications
- Material: Polycarbonate (PC)
- Colour: Transparent or other colours available on request
- Specific gravity: 1.2 g/cm³
- Temperature range: -40°C to +120°C
- Coefficient of expansion: 0.065 mm/m per °C
- E-modulus: 2400 MPa
- Bending strength: 900 kg/cm²
- Tensile strength: 60 MPa
- Impact resistance: Very high, virtually unbreakable
- Light transmission: Up to 88% (depending on thickness and finish)
- Fire rating: B1 (fire-retardant in accordance with DIN 4102)
- Chemical resistance: Resistant to oils, greases, dilute acids and alkalis; not resistant to organic solvents such as acetone or benzene
- Tolerances:
- Thickness tolerance: +/- 10% of nominal thickness
- Cutting tolerance: +/- 1 mm
- Deviation squareness: Max. 1.5 mm/1 m
Uses of a transparent tube
Due to its impact-resistant properties, a transparent polycarbonate tube is primarily used for technical applications and is suitable for direct contact with foodstuffs. Examples include components requiring high impact resistance and dimensional stability, as well as medical devices and medical components that must remain transparent. The transparent nature of these tubes also makes them suitable for visual inspection in industrial processes. Furthermore, transparent tubes are also frequently used in protective equipment.
Tailor-made
Kunststof Forte supplies transparent polycarbonate tubes that can be custom-made to your exact specifications. The tubes are available with an outer diameter of 10 to 200 mm, a wall thickness of between 1.5 and 5 mm, and lengths of 1000 or 2000 mm. This allows you to choose a tube that is both strong enough and light-transmitting, without any unnecessary material.
You can find more background information on polycarbonate at BouwTotaal and Environment First.
Place an order in the webshop
Would you like to buy a polycarbonate tube that is transparent? Then place an order in the webshop and provide the desired dimensions: the outer diameter, wall thickness and length in mm. The average delivery time is 2 to 5 working days, so you will soon have your transparent plastic tube at home. Need more information? Let us know, you can call +31 (0) 622 340 847 or send an e-mail to info@kunststofforte.nl. You can also use the contact form.
